W-Teda

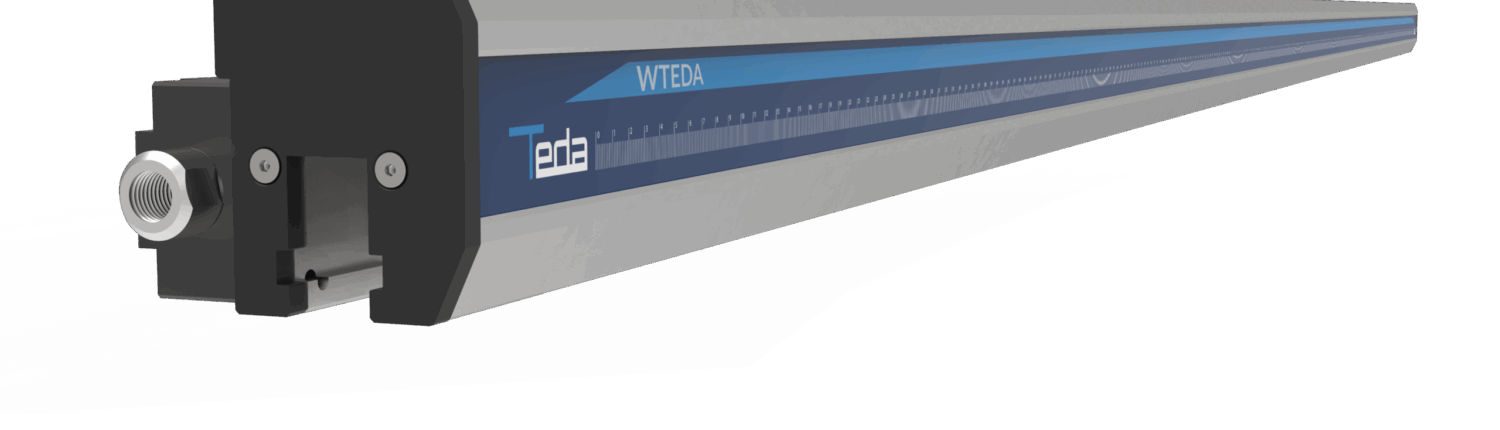

Pneumatic clamping system for New Standard style tool

W-Teda

Pneumatic clamping system for New Standard style tool

General informations

Quick pneumatic upper system in hardened C45 for New Standard tools, length from 1020 to 6120 mm. Maximum load 1800 kN / m on the head and shoulder.

Technical features

UPPER TOOLS

The WT line clamping are New Standard tool fastening systems. It is also possible to transform a press brake with Promecam attachment into New Standard.

Dual orientation

The WROL axial locking system guarantees maximum flexibility in terms of use as the punch can be easily mounted in inverted mode.

alignment

All WT systems guarantee the automatic alignment of the punches with their return to the stop on the work surfaces: on the head or on the shoulder.

Models

Code	Length
WT 1020	1020 mm
WT 1530	1530 mm
WT 2040	2040 mm
WT 2550	2550 mm
WT 3060	3060 mm
WT 4590	4590 mm
WT 5100	5100 mm
WT 5610	5610 mm
WT 6120	6120 mm
